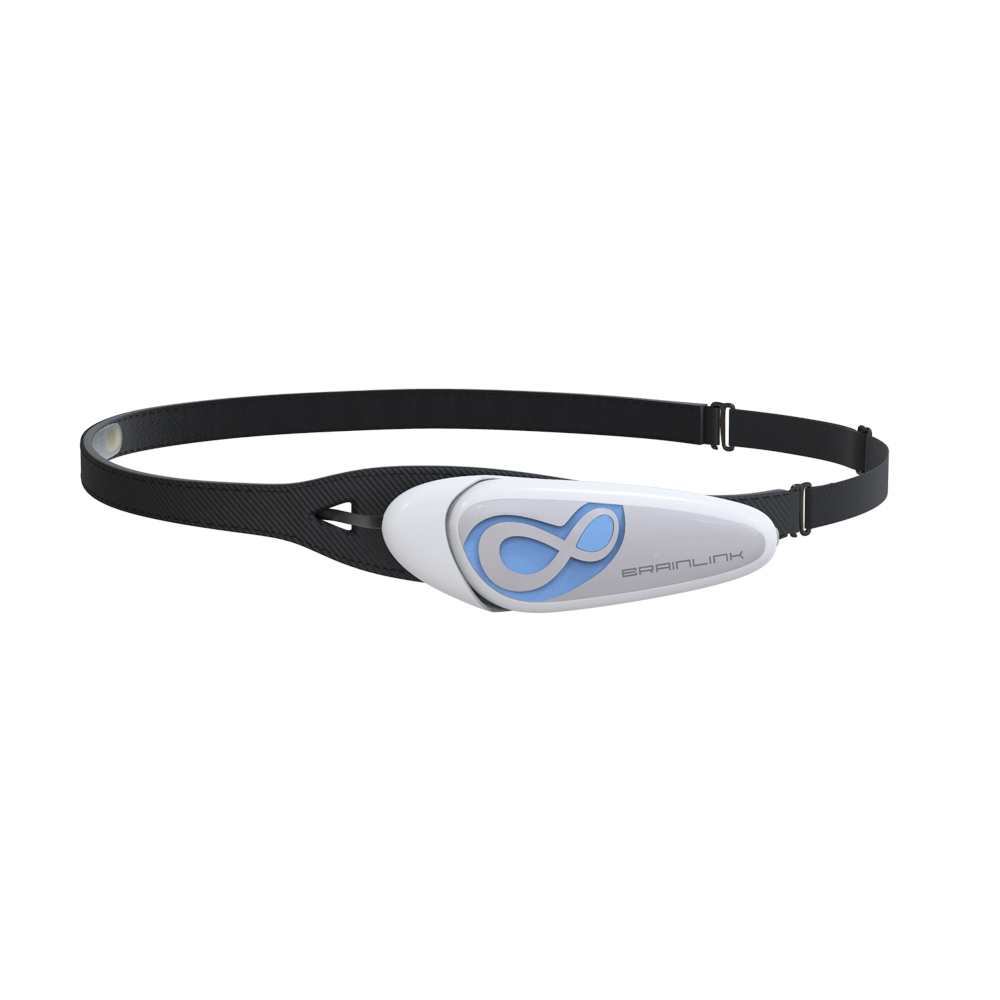

BL002
Overview BrainLink BL002 uses a more comfortable and easy-to-wear design. With the soft leather headband,it fits with bigger range of headsizes. BL002 is especially designed to fit end users such as gamers and mediators.
Main Features
15+Apps,update constanly
Apple MFi certified
Open source API,3rd party developer ecosystem
Technical Specification
Apperance &Material
Size(cm):40cm with elastic band
Weight(g): 39g
Materuak:PC/ABS/Leather/Gold plating
Package size (mm): L178*W178*H54
Data Collection
TGAM Chipest
RAW+eSense data
Baud rate: 57600
Socket: UART RS232
Dry electrodes×3
2 Forehead Electrodes: EEG GND REF
1 earclip electrode: REF
